商品名稱：汽車排氣分析儀 排氣分析儀
商品型號：DP-HPC500
商品型號：DP-HPC500

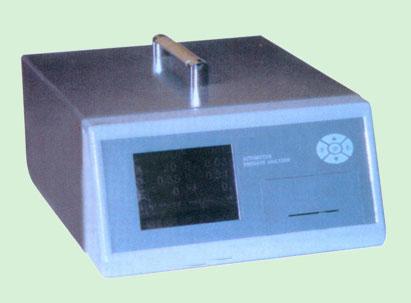

汽車排氣分析儀 排氣分析儀 型號：DP-HPC500
主要功能特點：
大屏幕液晶顯示，全中文菜單；
用于測量汽車排氣中CO、HC、CO2、O2、NOx濃度及 λ值和COcor值；
具有單怠速、雙怠速、通用測量功能；
可測量以汽油、LPG、CNG及酒精等作燃料的車輛；
按新國標及美國BAR－97標準研制，1級精度；
具有自動調零，自動清洗，自動溫度補償、壓力補償；
具有HC殘留測量、流量監控、氣路泄漏檢查；
具備轉速、油溫測量通道，內置打印機（模擬）接口供選擇；
可車牌號輸入及2000組數據存貯，備查功能，時鐘顯示。
主要技術參數：
測量范圍 HC：0～10000×10-6（ppm）vol CO:0～10×10-2(%)vol
CO2:0～20×10-2(%)vol O2: 0～25×10-2(%)vol
NOx:0～5000×10-6（ppm）vol λ:0.5～1.5
COcor:0～10×10-2(%)vol
示值誤差 HC±12 ×10-6（ppm）vol(絕對誤差)或±5%(相對誤差)
CO±0.06×10-2(%)vol (絕對誤差)或±5%(相對誤差)
CO2 ±0.5×10-2(%)vol (絕對誤差)或±5%(相對誤差)
O2 ±0.1 ×10-2(%)vol (絕對誤差)或±5%(相對誤差)
NOx ±25 ×10-6（ppm）vol(絕對誤差)或±4%(相對誤差)
重復性 重復誤差≤±2%
穩定性 自動校零，量矩漂移≤±3%
分辨率 HC：1×10-6（ppm）vol CO: 0.01×10-2(%)vol
CO2: 0.1×10-2(%)vol O2: 0.01×10-2(%)vol
NOx:1×10-6（ppm）vol λ:0.01
響應時間 95%響應不大于10秒
預熱時間 8min（可預熱3min應急檢測）
輸出方式 可屏幕顯示，可打印氣體濃度最大值、平均值、最小值及車牌號、測試時間、
日期，轉速、油溫和λ、COcor值，可附接口與計算機聯網
環境條件 溫度0～40℃，相對濕度≤90%
電源 AC100-240V 50Hz 或DC12V（選加電源逆變器）消耗功率50VA
外形尺寸 420mm(長)×310mm(寬)×170mm(高)
重量 約9kg
Main Features:
◆Large-screen LCD display, full English menu;
◆Used to measure vehicle exhaust CO, HC, CO2, O2 , NOxconcentration and λ values and COcor;
◆Idle with a single, dual idle speed, general-purpose measurement function;
◆Used to measure vehicle exhaust CO, HC, CO2, O2 , NOxconcentration and λ values and COcor;
◆Idle with a single, dual idle speed, general-purpose measurement function;
◆Measurable by gasoline, LPG, CNG, and alcohol-fueled vehicles;
◆National standard and the United States under the new BAR-97 standards for research and development,1-level precision.;
◆With auto-zero, automatic cleaning, automatic temperature compensation, pressure compensation;
◆With the HC residual measurement, traffic monitoring, gas path leakage inspection;
◆With rotational speed, oil temperature measurement channels, built-in printer (analog) interface for the choice;
◆License plate number can be entered, and 2000 sets of data storage, for future reference function, the clock display.
◆National standard and the United States under the new BAR-97 standards for research and development,1-level precision.;
◆With auto-zero, automatic cleaning, automatic temperature compensation, pressure compensation;
◆With the HC residual measurement, traffic monitoring, gas path leakage inspection;
◆With rotational speed, oil temperature measurement channels, built-in printer (analog) interface for the choice;
◆License plate number can be entered, and 2000 sets of data storage, for future reference function, the clock display.
Main technical parameters:
Test Scope：HC：0～10000×10-6（ppm）vol CO：0～10×10-2(%)vol
CO2：0～20×10-2(%)vol O2：0～25×10-2(%)vol
NOx:0～5000×10-6（ppm）vol λ：0.5～1.5 COcor：0～10×10-2(%)vol
Shows the value error：HC ± 12×10-6（ppm）vol (absolute error)or± 5% (relative error)
CO± 0.06×10-2(%) vol (absolute error)or± 5% (relative error)
CO2 ±0.5×10-2 (%) vol (absolute error)or± 5% (relative error)
O2 ±0.1×10-2(%) vol (absolute error)or± 5% (relative error)
NOx ±25×10-6（ppm）vol (absolute error)or±4% (relative error)
Stability：Automatic zero, volume moments drift ≤ ± 3%
Repeatability：Repeat error ≤ ± 2%
Resolution：HC：1×10-6（ppm）vol CO：0.01×10-2(%) vol
Repeatability：Repeat error ≤ ± 2%
Resolution：HC：1×10-6（ppm）vol CO：0.01×10-2(%) vol
CO2：0.1×10-2(%) vol O2：0.01×10-2(%) vol
NOx:1×10-6（ppm）vol λ：0.01
Response Time：95% of the response to no more than 10 seconds
Warm-up Time：8 min（May the preheating 3min urgent examination）
Warm-up Time：8 min（May the preheating 3min urgent examination）
Output Mode：Can display can be printed gas concentrations in the maximum,
average, minimum and license plate number, test time, date, speed, oil temperature, and λ, COcor values may also be attached to interface with the computer network
Environmental conditions：Temperature 0 ~ 40 ℃, relative humidity ≤ 90%
Power：AC100-240V 50Hz or DC12V (select plus power inverter) Power consumption 50VA
Dimensions：420mm (length) × 310mm (width) × 170mm (H)
Weight：About 9kg
Power：AC100-240V 50Hz or DC12V (select plus power inverter) Power consumption 50VA
Dimensions：420mm (length) × 310mm (width) × 170mm (H)
Weight：About 9kg
